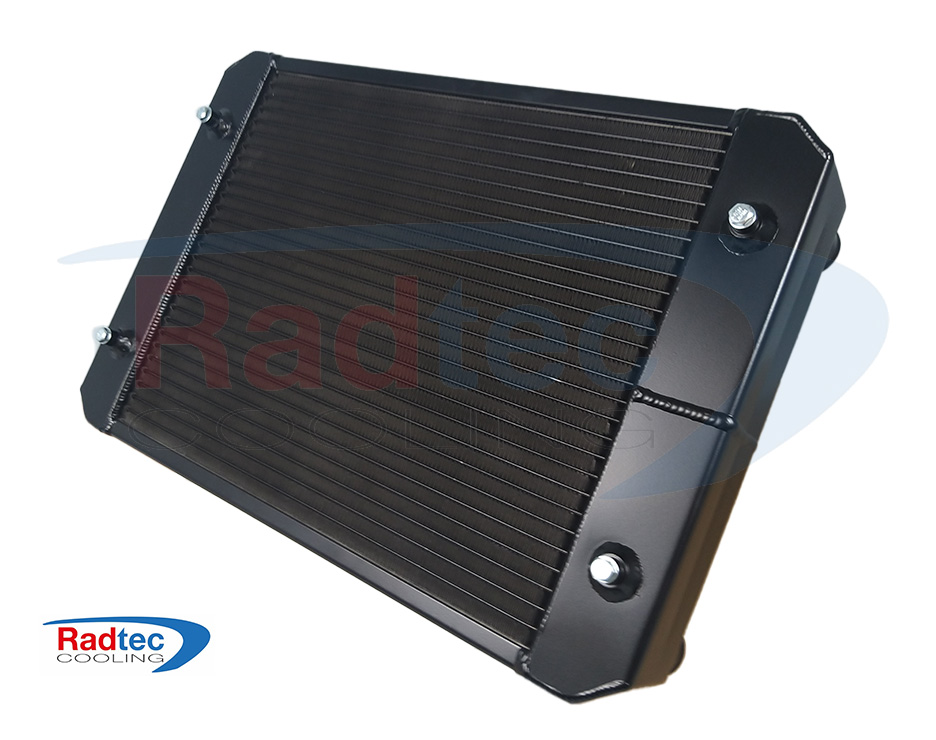

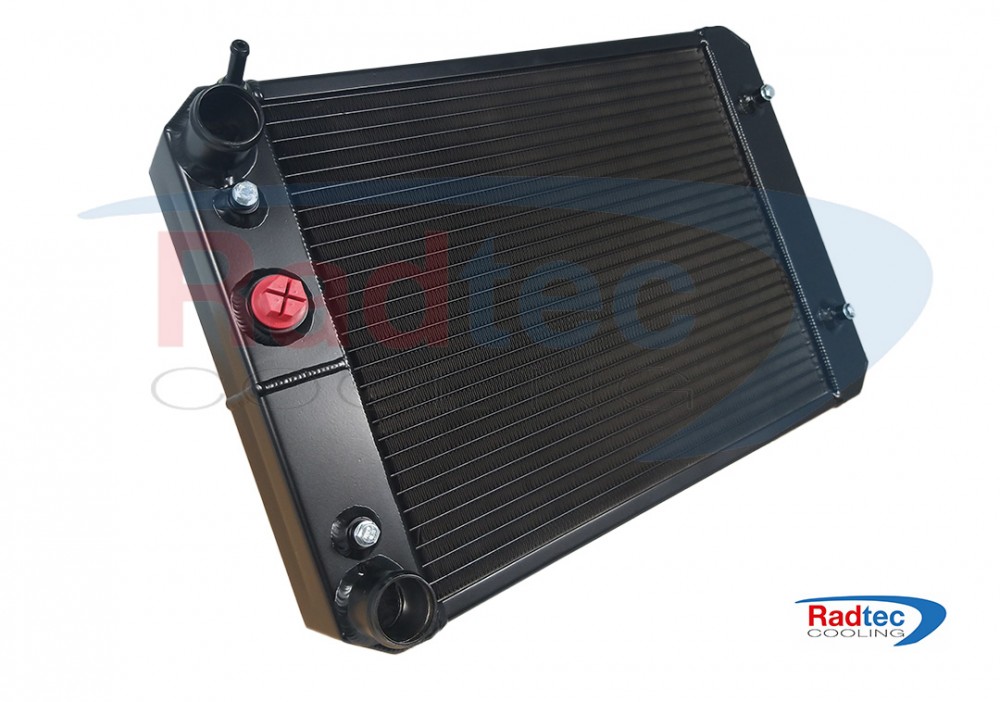

This radiator is an improved version on the popular VW Polo/Golf radiator that was used in many kit cars and single seat race cars. This unit is built using a 50mm deep core to offer a 35% upgrade in cooling when compared with the original radiator.

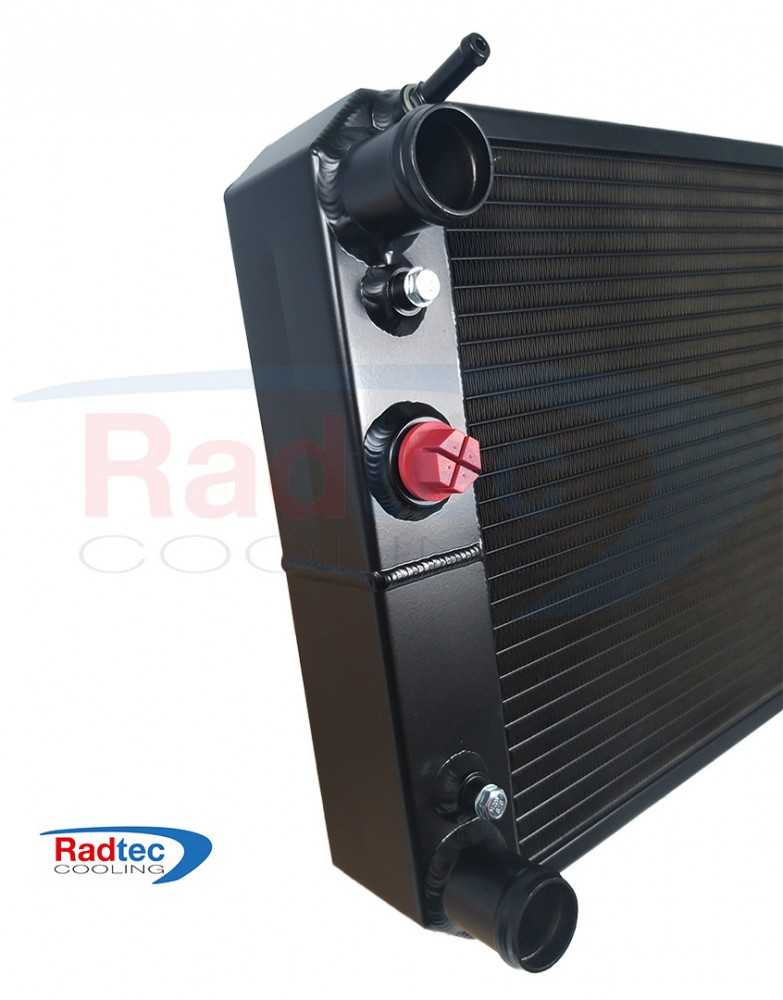

The radiator measures 470mm wide and 315mm high and is available with a total depth of either 60mm or 70mm overall, please state on the order form which depth you require or as standard the 70mm depth will be supplied. The inlet and outlet pipes as standard measure 32mm OD, again this size is adjustable to suit your requirements and the fan temperature switch boss thread is M22 x 1.5mm. The overflow pipe is 8mm OD. The radiator is available with or without the overflow pipe please state on the order form if you do not require this on the radiator.

Why not add a SPAL race fan for total control of your cooling and a thermostatic fan switch to operate your fan. For more information on the fitted fans please see the links below:

VA09-AP8/C-54A

VA09-AP8/C-54S
